2" to 24" Swing Check Valve Class 600 - 2500

Produk Check Valve Powell

Radiksa merupakan distributor dari produk valve merk Powell yang ada di USA. Kami mendistribusikannya di Indonesia untuk membantu para pebisnis industri lokal dan internasional dalam memenuhi kebutuhan industri oil dan gas yang mudah digunakan serta memiliki kualitas yang teruji dengan baik. Kami adalah pelopor dan pemegang valve manual dan valve otomatis yang diandalkan.

POWELL VALVES

Pressure Seal Wall Swing Check Valve

Cast Carbon, Stainless Steel or Alloy Steel

2" - 24" (50-600 mm)

ASME Classes 600 - 2500

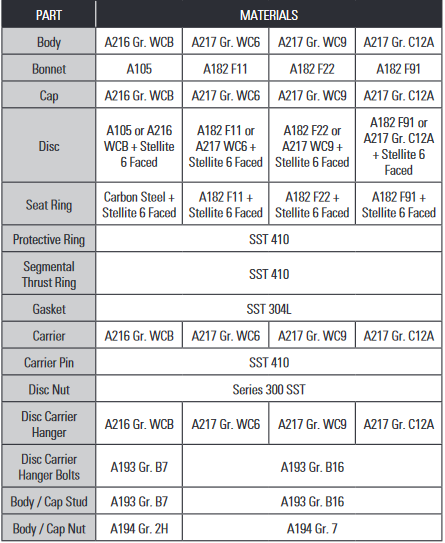

    STANDARD MATERIALS (Other Materials Available) :

    DESIGN SPECIFICATIONS :

    DESIGN FEATURES :

• Standard trim is stellite faced seat integral to the body and 13%, chrome carrier pin (API trim 5). Other trims available on request.
• Valves are full port design per ASME B16.34 table A-1.
• Seat Faces lapped for smooth finish and superior sealing.
• Wall thickness per heavy wall API 600 requirements.
• Swivel disc for improved seat alignment and longer life.
• Each valve is shell and seat pressure tested per industry standard API 598.
• Check valves are suitable for service in horizontal line with cap vertical or in a vertical with flow upward.
• Carrier pin is confined within the body wall and is not accessible from the exterior, thus no side body penetrations, eliminating a common leak path.
• Weld end valves are B16.10 short pattern design. flanged end valves are available on request and are B16.10 long-pattern design. Weld end valve dimensions given in the table on next page.
• Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test, inspection result and certificate of conformance.
• Other available options as follows: Alternate valve materials such as chrome and stainless steel alloys, Alternate trim materials, Drain and other auxiliary connections, NACE service, Special cleaning for aplications such as oxygen or chlorine, Other options available as specified.
