10" to 12" Swing Check Valve Class 150

Produk Check Valve Powell

Radiksa merupakan distributor dari produk valve merk Powell yang ada di USA. Kami mendistribusikannya di Indonesia untuk membenatu para pebisnis industri lokal dan internasional dalam memenuhi kebutuhan industri oil dan gas yang mudah digunakan serta memiliki kualitas yang teruji dengan baik. Kami adalah pelopor dan pemegang valve manual dan valve otomatis yang diandalkan.

POWELL VALVES

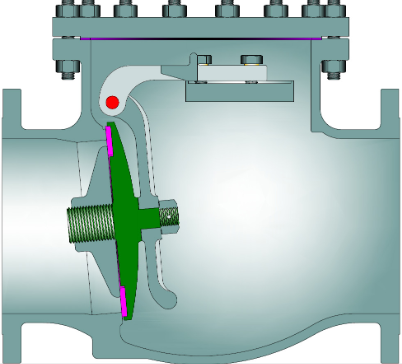

ASME B16.34 Wall Swing Check Valves

Bolted Bonnet, Classes 150

10" - 12" (250 - 300 mm) Flanged or Buttweld Ends
Cast Stainless Stell

     STANDARD MATERIALS (Other Materials Available) :

    DESIGN SPECIFICATIONS :

    DESIGN FEATURES :

• Integral Seats.
• Swivel disc for improved seat alignment and longer life.
• Each valve is shell and seat pressure tested.
• Check valves are suitable for service in horizontal line with cap verticalor in a vertical line with flow upward.
• Carrier pin is confined with in the body wall and is not accessible from the exterior. This eliminates potential leak path with side plug design.
• Disc suspended from valve cap and without side plugs.
• Cap has a male and female joint.
• Weld ends are available per ASME B16.25 or per customers specification.
• Flange: Classes 150-300: 1/16" raised face, Finish 125-250 AARH for all valves.
• Valves are specially cleaned and processed for oxygen or cryogenic service and are then sealed to prevent contamination.
• Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test, inspection result and certificate of conformance.
• Other available options as follows: Alternate valve materials, Alternate trim materials, Special cleaning for aplications such as oxygen or chlorine.
