2" to 24" Swing Check Valve Class 150 - 1500

Produk Check Valve Powell

Radiksa merupakan distributor dari produk valve merk Powell yang ada di USA. Kami mendistribusikannya di Indonesia untuk membantu para pebisnis industri lokal dan internasional dalam memenuhi kebutuhan industri oil dan gas yang mudah digunakan serta memiliki kualitas yang teruji dengan baik. Kami adalah pelopor dan pemegang valve manual dan valve otomatis yang diandalkan.

POWELL VALVES

API 600 Wall Swing Check Valve

Bolted Bonnet, Asme Classes 150 to 1500

Cast Carbon, Stainless Steel or Alloy Steel

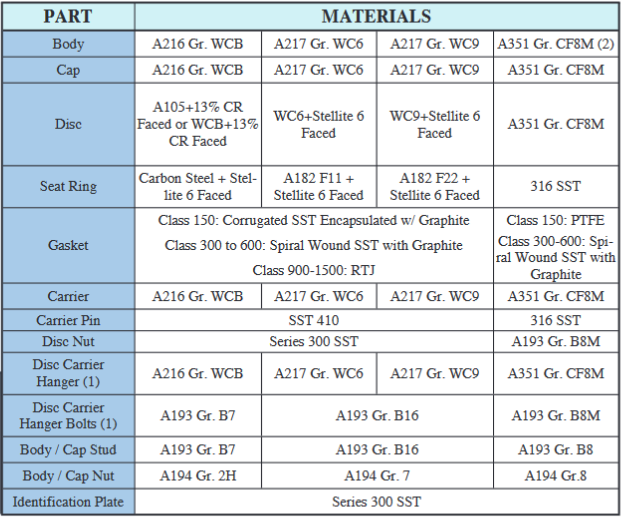

    STANDARD MATERIALS (Other Materials Available) :

    DESIGN SPECIFICATIONS :

    DESIGN FEATURES :

• Standard trim is API trim 8 for carbon steel valves, API trim 5 for chrome alloy valves, and API trim 10 for CF8M (T316) valves for optimal performance under normal conditions. Other trim materials available on request.
• Seat Faces lapped for smooth finish and superior sealing.
• Wall thickness per heavy wall API 600 requirements.
• Swivel disc for improved seat alignment and longer life.
• Each valve is shell and seat pressure tested per industry standard API 598.
• Check valves are suitable for service in horizontal line with cap vertical or in a vertical line with flow upward.
• Carrier pin is confined with in the body wall and is not accessible from the exterior, thus no side body penetrations, eliminating a common leak path, on classes 150 through 600.
• End Flanges have the following raised faces per ASME B16.5: Classes 150-300: 1/16" (2mm). Classes 600-1500: 1/4" (7mm).
• Each valve has a unique certification number that is traceable to the valve certification sheet which includes MTR data, pressure test, inspection result and certificate of conformance.
• Other available options as follows: Alternate valve materials such as chrome and stainless steel alloys, Alternate trim materials, Drain and other auxiliary connections, NACE service, Special cleaning for aplications such as oxygen or chlorine, Other options available as specified.
